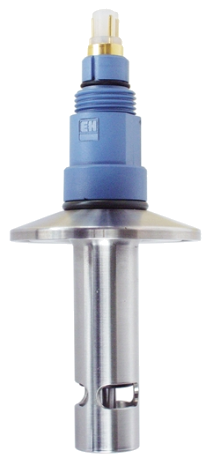

Endress Hauser Analog conductivity sensor Condumax
Part Number: CLS16
Bitte kontaktieren Sie uns für mehr Informationen und/oder einer Anfrage.
Anfrage Preis und Verfügbarkeit
Endress Hauser Analog conductivity sensor Condumax
Spezifikationen
| Messprinzip | Conductive |
|---|---|
| Merkmal | Hygienic 2-electrode conductivity sensor |
| Design | Hygienic 2-electrode conductivity sensor with coaxially arranged electrodes, electropolished stainless steel and FDA sealing material; sterilizable |
| Prozessdruck bar | max. 12 bar at 20°C (max.174 psi at 68°F) |
| Elektrodendurchmesser mm | Electrode diameter: 17 mm (0.66 inch) |
| Elktrodenlänge mm | Electrode length: 54 mm ( 2.10 inch) |
| Anwendung | Pharmaceuticals, pure and ultrapure water |
| Brand_ | Endress Hauser |
| Anschluss | Process connection: Varivent, Neumo, Clamp. Cable: TOP68 connector or fixed cable. |
| Material | Isolation: PEEK. Electrode: polished stainless steel 1.4435. Sealing: Isolast (FFKM) FDA conform. |
| Messbereich (a) | k=0,1: 0,04µS/cm - 500µS/cm |
| ModelName | CLS16 Analog conductivity sensor Condumax |
| PartNumber | CLS16 |
| process_temprature_c | Max. 120°C (150°C/30 min), max. 248°F (302°F/30 min.) |
