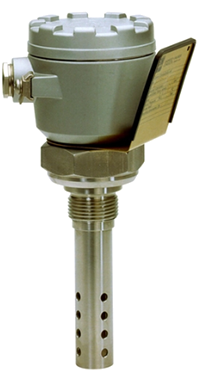

Endress Hauser Analog conductivity sensor Condumax
Part Number: CLS12
Bitte kontaktieren Sie uns für mehr Informationen und/oder einer Anfrage.
Anfrage Preis und Verfügbarkeit
Endress Hauser Analog conductivity sensor Condumax
Spezifikationen
| Messprinzip | Conductive |
|---|---|
| Merkmal | 2-electrode conductivity cell |
| Design | Large coaxially arranged electrodes for a fast media flow through the cell |
| Prozessdruck bar | Max. 40 bar up to 100 °C (max. 580 psi up to 212 °F) without CLA 751 flow chamber. Max. 12 bar up to 150 °C (max. 174 psi up to 302 °F) with CLA 751 flow chamber. |
| Elektrodendurchmesser mm | Electrode diameter: 25 mm (0.98 inch) |
| Elktrodenlänge mm | Immersion depth: 50 to 115 mm (1.97 to 4.53 inch) |
| Anwendung | Power plant, condensate, boiler feed water |
| Brand_ | Endress Hauser |
| Anschluss | Process connection : G1" and NPT1" Fixed cable on transmitter |
| Material | Electodes: stainless steel 1.4571. Sealing: PEEK / EPDM. |
| Messbereich (a) | k=0.01: 0 to 20 µS/cm |
| Messbereich (b) | k= 0.1: 0 to 200 µS/cm |
| ModelName | CLS12 Analog conductivity sensor Condumax |
| PartNumber | CLS12 |
| process_temprature_c | -30 to 160 °C (-22 to 320 °F) |
