Grundfos MG100LC (86902533)
Produkt ID: 86902533
Anfrage Preis und Verfügbarkeit
Grundfos MG100LC (86902533)
Grundfos MG100LC (86902533)
| Installation: | |
| Umgebungstemperatur: | -30 .. 60 °C |

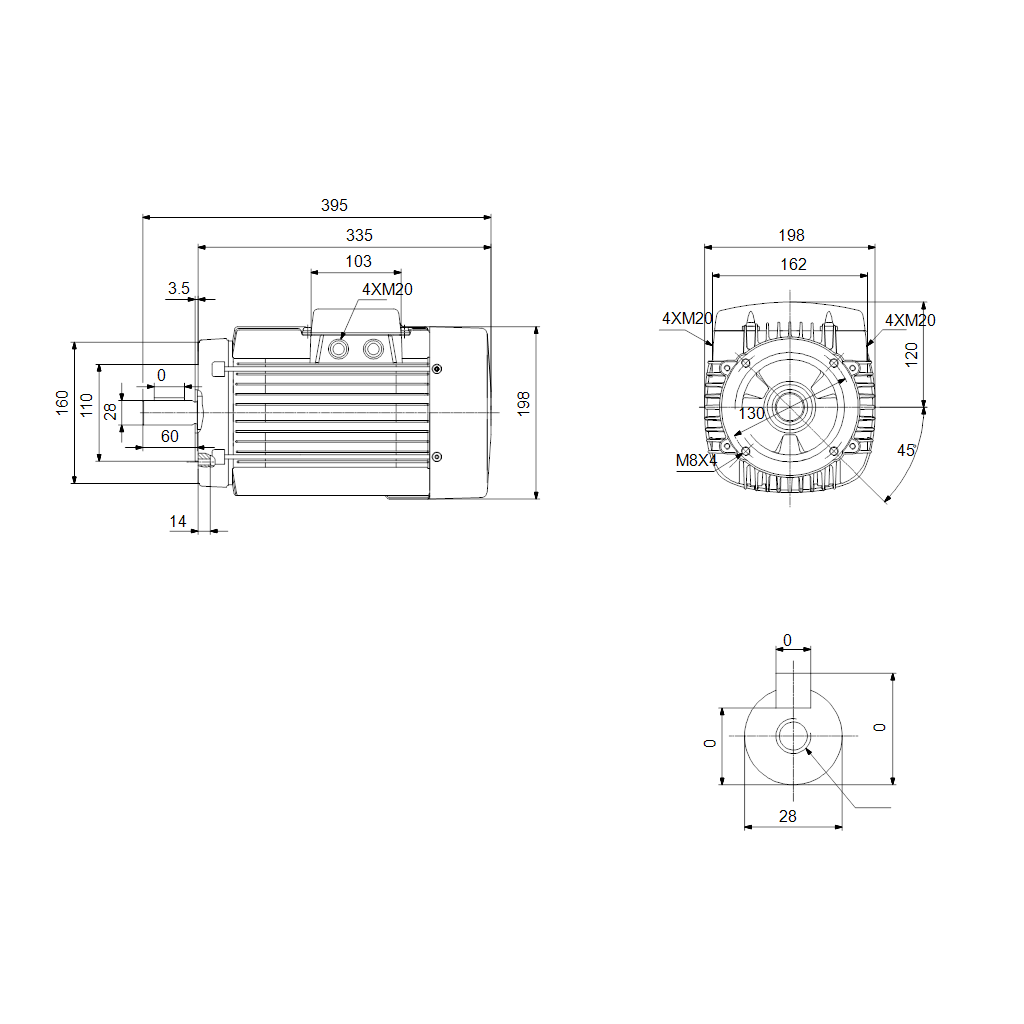

| Flanschgröße des Motors: | FT130 |
| Elektrische Daten: | |
| Std. Motor: | IEC |
| Bauart des Motors: | 100LC |
| Motorbemessungsleistung P2: | 3 kW |
| Netzfrequenz: | 50 Hz |
| Bemessungsspannung: | 3 x 500-550D V |
| Bemessungsstrom: | 4.80-4.75 A |
| Maximale Stromaufnahme: | 5.30-5.25 A |
| Anlaufstrom: | 700-770 % |
| Leistungsfaktor Cos phi: | 0.82-0.76 |
| Nenn-Drehzahl: | 1440-1450 1/min |
| Nenn-Drehmoment bei Vollast: | 19.80-19.8 Nm |
| Anlaufmoment: | 210-250 % |
| Kippmoment des Motors: | 2.8-340 % |
| Trägheitsmoment: | 0.0076 kg m² |

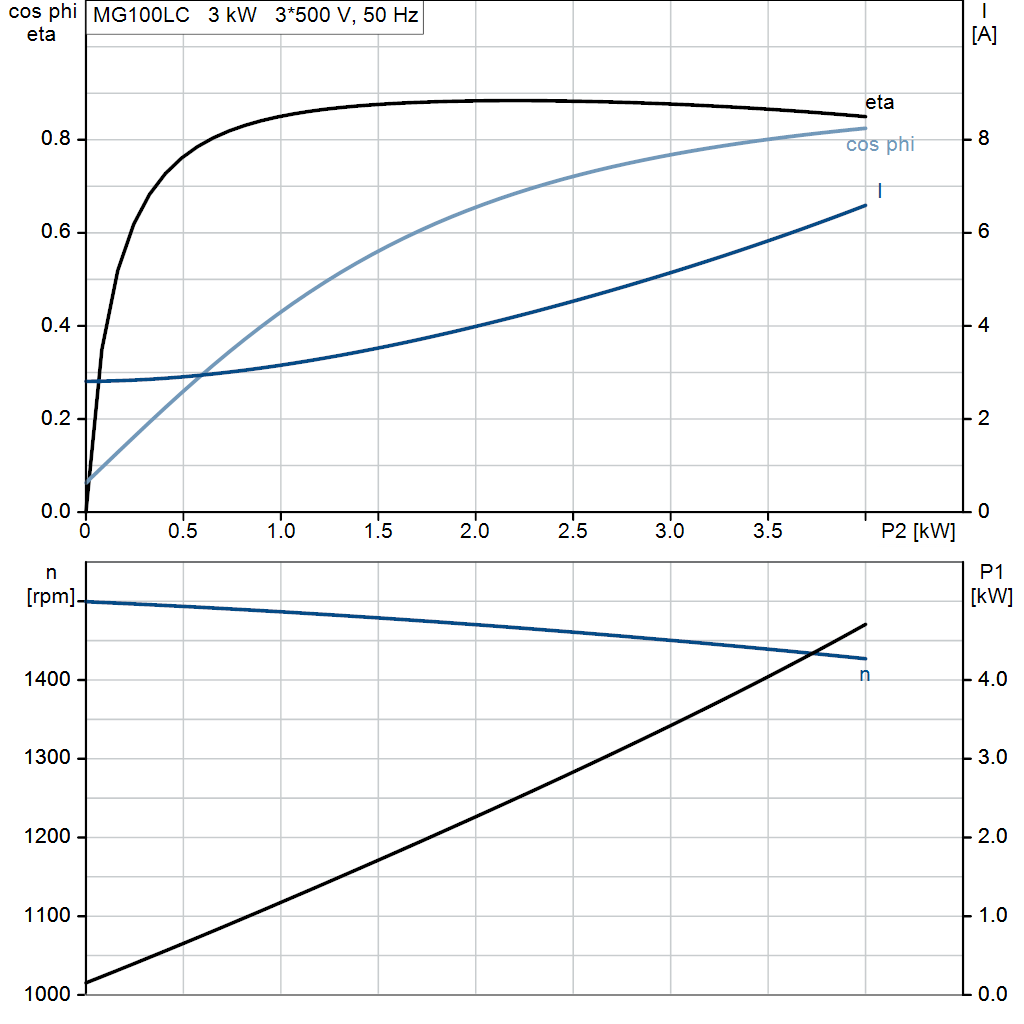

| Wirkungsgrad: | IE387,7% |
| IE-Wirkungsgradklasse: | IE3 |
| Motorwirkungsgrad bei Vollast: | 87.7 % |
| Motorwirkungsgrad bei 3/4-Last: | 86 % |
| Motorwirkungsgrad bei halber Last: | 84.5 % |
| Motorpole: | 4 |
| Schutzart (gemäß IEC 34-5): | 55 Dust/Jetting |
| Wärmeklasse (IEC 85): | F |
| Sonstiges: | |
| Nettogewicht: | 31 kg |
| Farbcode: | NCS 9000 glänzend 40 +/-10, Kataphoresebeschichtung |
