Grundfos MG90SB (86901928)
Produkt ID: 86901928
Anfrage Preis und Verfügbarkeit
Grundfos MG90SB (86901928)
Grundfos MG90SB (86901928)
3-phasiger Normmotor
| Installation: | |
| Umgebungstemperatur: | -30 .. 60 °C |

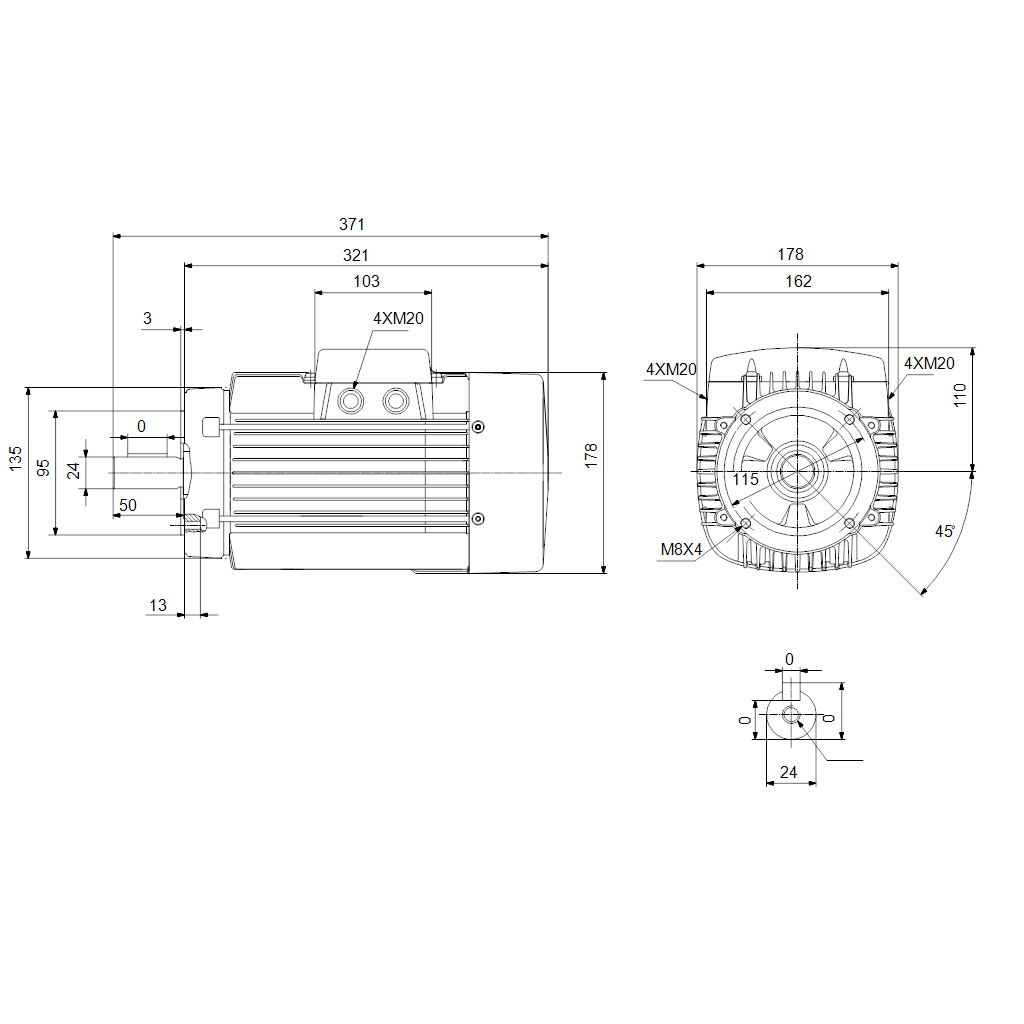

| Flanschgröße des Motors: | FT115 |
| Elektrische Daten: | |
| Std. Motor: | IEC |
| Bauart des Motors: | 90SB |
| Motorbemessungsleistung P2: | 1.1 kW |
| Netzfrequenz: | 50 Hz |
| Bemessungsspannung: | 3 x 220-240D/380-415Y V |
| Bemessungsstrom: | 4.85/2.80 A |
| Maximale Stromaufnahme: | 5.35/3.10 A |
| Anlaufstrom: | 820-900 % |
| Leistungsfaktor Cos phi: | 0.71-0.64 |
| Nenn-Drehzahl: | 1450-1460 1/min |
| Nenn-Drehmoment bei Vollast: | 7.20-7.15 Nm |
| Anlaufmoment: | 270-330 % |
| Kippmoment des Motors: | 360-430 % |
| Trägheitsmoment: | 0.0039 kg m² |
| Wirkungsgrad: | IE3 84,1% |
| IE-Wirkungsgradklasse: | IE3 |
| Motorwirkungsgrad bei Vollast: | 84.1 % |
| Motorwirkungsgrad bei 3/4-Last: | 84.6 % |
| Motorwirkungsgrad bei halber Last: | 82.9 % |
| Motorpole: | 4 |
| Schutzart (gemäß IEC 34-5): | 55 Dust/Jetting |
| Wärmeklasse (IEC 85): | F |
| Sonstiges: | |
| Nettogewicht: | 20 kg |
| Farbcode: | NCS 9000 glänzend 40 +/-10, Kataphoresebeschichtung |
