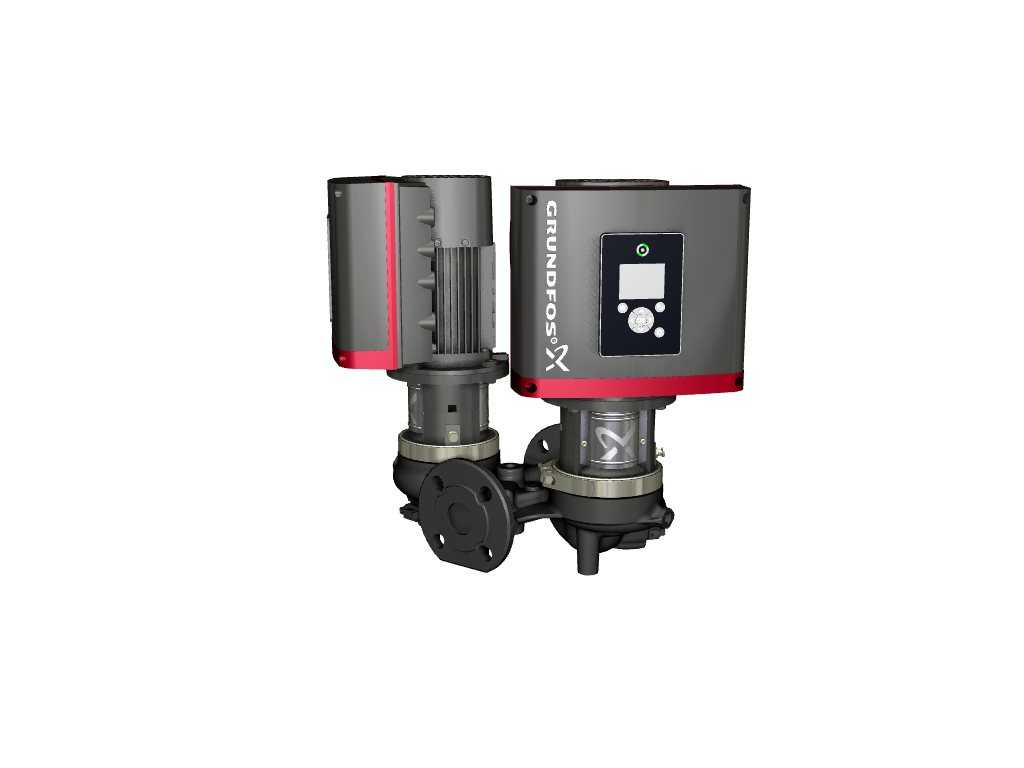

Grundfos TPE3 D 40-80-S A-F-A-BUBE (98438200)
Produkt ID: 98438200
Anfrage Preis und Verfügbarkeit
Grundfos TPE3 D 40-80-S A-F-A-BUBE (98438200)
Grundfos TPE3 D 40-80-S A-F-A-BUBE (98438200)
| Specification | Value | |
|---|---|---|
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | 0 .. 120 °C | |
| Liquid temperature during operation: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Speed for pump data: | 2970 rpm | |

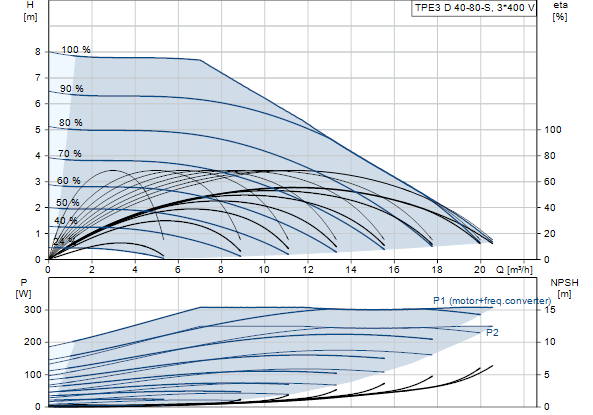

| Rated flow: | 11.1 m³/h | |
| Rated head: | 5.8 m | |
| Primary shaft seal: | BUBE | |
| Curve tolerance: | ISO9906:2012 3B | |
| Materials: | ||
| Pump housing: | Cast iron | |
| Impeller: | Composite PES/PP 30% GF | |
| Installation: | ||
| Range of ambient temperature: | -20 .. 50 °C | |
| Maximum operating pressure: | 10 bar | |
| Max pressure at stated temp: | 10 bar / 120 °C | |
| Flange standard: | DIN | |
| Pipe connection: | DN 40 | |
| Pressure rating: | PN 6/10 | |

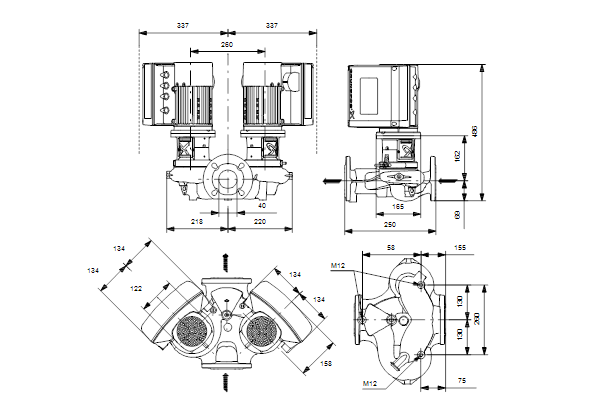

| Port-to-port length: | 250 mm | |
| Flange size for motor: | 56C | |
| Electrical data: | ||
| Motor type: | 71A | |
| IE Efficiency class: | IE5 | |
| Rated power - P2: | 2 x 0.25 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-500 V | |
| Rated current: | 0,90-0,75 A | |
| Cos phi - power factor: | 0,58-0,50 | |
| Rated speed: | 360-4000 rpm | |
| Efficiency: | 81,2% | |
| Enclosure class (IEC 34-5): | IP55 | |
| Insulation class (IEC 85): | F | |
| Others: | ||
| Minimum efficiency index, MEI �?�: | 0.7 | |
| ErP status: | EuP Standalone/Prod. | |
| Net weight: | 50.7 kg | |
| Gross weight: | 63.9 kg | |
| Shipping volume: | 0.25 m³ | |
