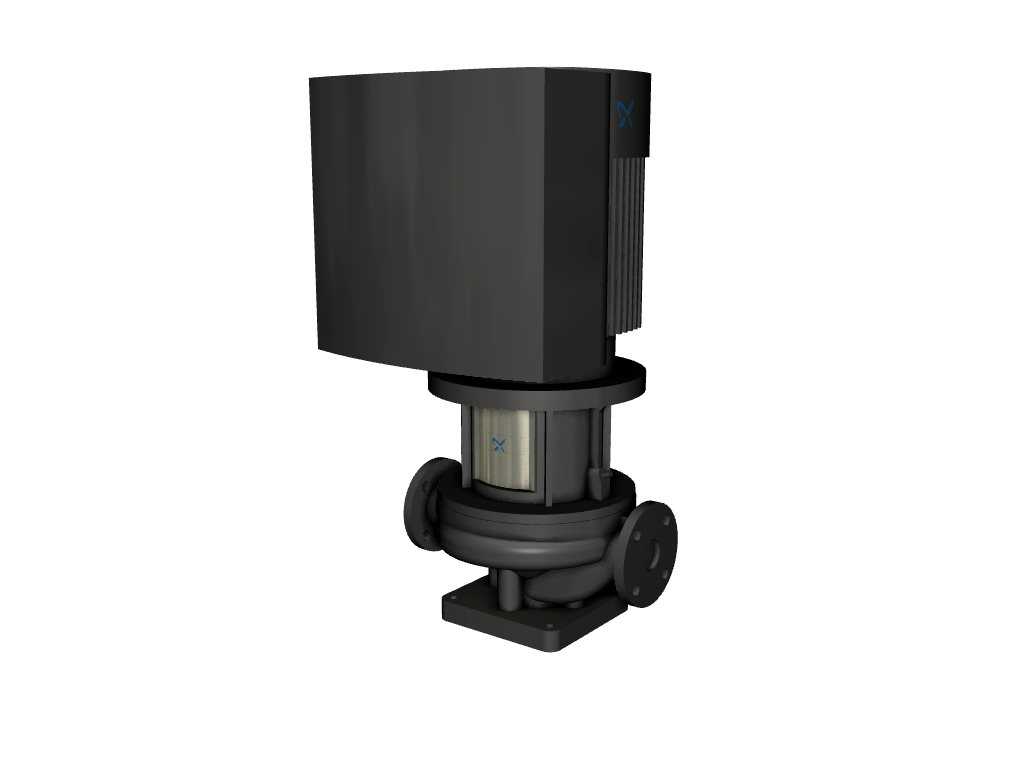

Grundfos TPE 50-630/2-S A-F-A-BQQE (98742806)
Produkt ID: 98742806
Anfrage Preis und Verfügbarkeit
Grundfos TPE 50-630/2-S A-F-A-BQQE (98742806)
Grundfos TPE 50-630/2-S A-F-A-BQQE (98742806)
| Specification | Value | |
|---|---|---|
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | -25 .. 120 °C | |
| Liquid temperature during operation: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||

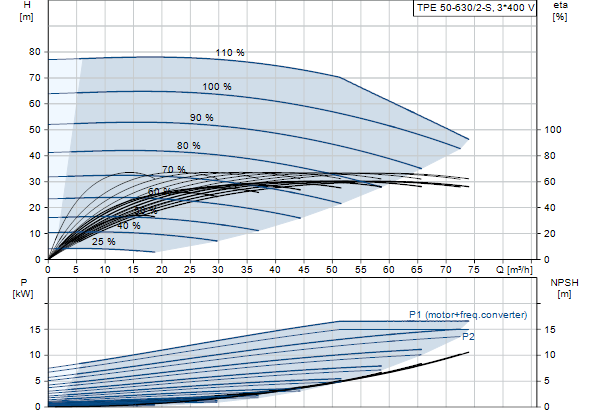

| Speed for pump data: | 2940 rpm | |
| Rated flow: | 55.9 m³/h | |
| Rated head: | 53.9 m | |
| Actual impeller diameter: | 219 mm | |
| Primary shaft seal: | BQQE | |
| Curve tolerance: | ISO9906:2012 3B | |

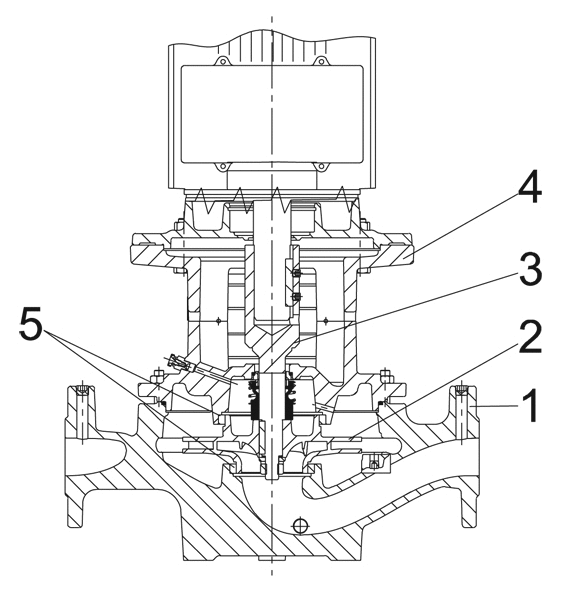

| Materials: | ||
| Pump housing: | Cast iron | |
| EN-JL1040 | ||
| ASTM A48-40 B | ||
| Impeller: | Cast iron | |
| EN-JL1030 | ||
| ASTM A48-30 B | ||
| Installation: | ||
| Range of ambient temperature: | -20 .. 40 °C | |
| Maximum operating pressure: | 16 bar | |
| Flange standard: | DIN | |
| Pipe connection: | DN 50 | |
| Pressure rating: | PN 16 | |

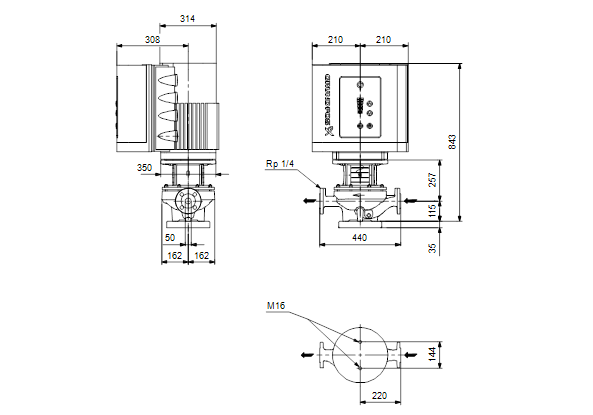

| Port-to-port length: | 440 mm | |
| Flange size for motor: | FF300 | |
| Electrical data: | ||
| Motor type: | 160MD | |
| IE Efficiency class: | IE3 | |
| Rated power - P2: | 15 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-480 V | |
| Rated current: | 30,0-26,0 A | |
| Cos phi - power factor: | 0,91-0,86 | |
| Rated speed: | 480-3540 rpm | |
| Efficiency: | IE3 91,9% | |
| Number of poles: | 2 | |
| Enclosure class (IEC 34-5): | IP55 | |
| Insulation class (IEC 85): | F | |
| Others: | ||
| Minimum efficiency index, MEI �?�: | 0.7 | |
| ErP status: | EuP Standalone/Prod. | |
| Net weight: | 197 kg | |
| Gross weight: | 226 kg | |
| Shipping volume: | 0.58 m³ | |
