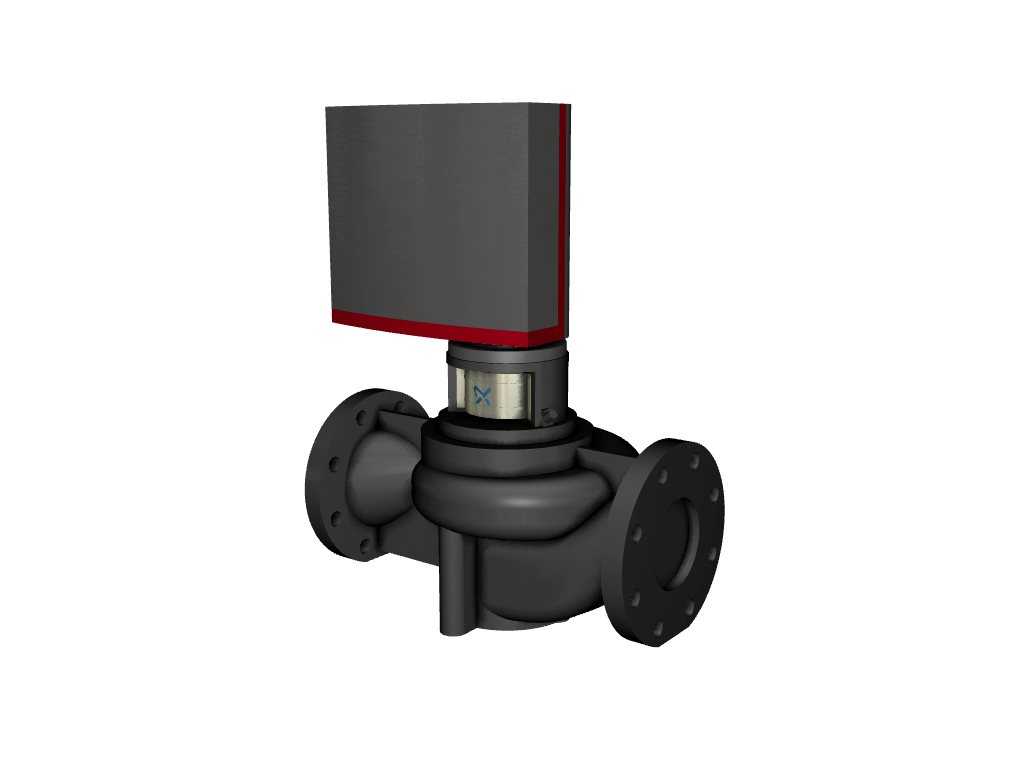

Grundfos TPE 100-60/4-S A-F-A-BUBE (98504684)
Produkt ID: 98504684
Anfrage Preis und Verfügbarkeit
Grundfos TPE 100-60/4-S A-F-A-BUBE (98504684)
Grundfos TPE 100-60/4-S A-F-A-BUBE (98504684)
| Specification | Value | |
|---|---|---|
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | 0 .. 140 °C | |
| Liquid temperature during operation: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||

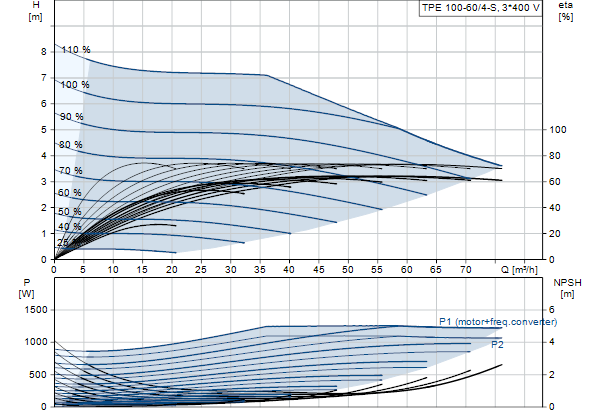

| Speed for pump data: | 1430 rpm | |
| Rated flow: | 63 m³/h | |
| Rated head: | 5.04 m | |
| Primary shaft seal: | BUBE | |
| Curve tolerance: | ISO9906:2012 3B | |
| Materials: | ||
| Pump housing: | Cast iron | |
| EN-JL1040 | ||
| ASTM A48-40 B | ||
| Impeller: | Stainless steel | |
| DIN W.-Nr. 1.4301 | ||
| AISI 304 | ||
| Installation: | ||
| Range of ambient temperature: | -20 .. 50 °C | |
| Maximum operating pressure: | 10 bar | |
| Flange standard: | DIN | |
| Pipe connection: | DN 100 | |
| Pressure rating: | PN 10 | |

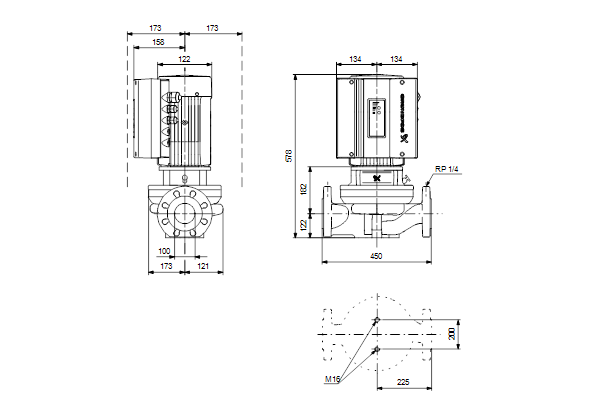

| Port-to-port length: | 450 mm | |
| Flange size for motor: | FT115 | |
| Electrical data: | ||
| Motor type: | 90SD | |
| IE Efficiency class: | IE5 | |
| Rated power - P2: | 1.1 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-500 V | |
| Rated current: | 2,30-2,10 A | |
| Cos phi - power factor: | 0,90-0,74 | |
| Rated speed: | 180-2000 rpm | |
| Efficiency: | 87,2% | |
| Enclosure class (IEC 34-5): | IP55 | |
| Insulation class (IEC 85): | F | |
| Others: | ||
| Minimum efficiency index, MEI �?�: | 0.70 | |
| ErP status: | EuP Standalone/Prod. | |
| Net weight: | 58 kg | |
| Gross weight: | 63.9 kg | |
| Shipping volume: | 0.16 m³ | |
