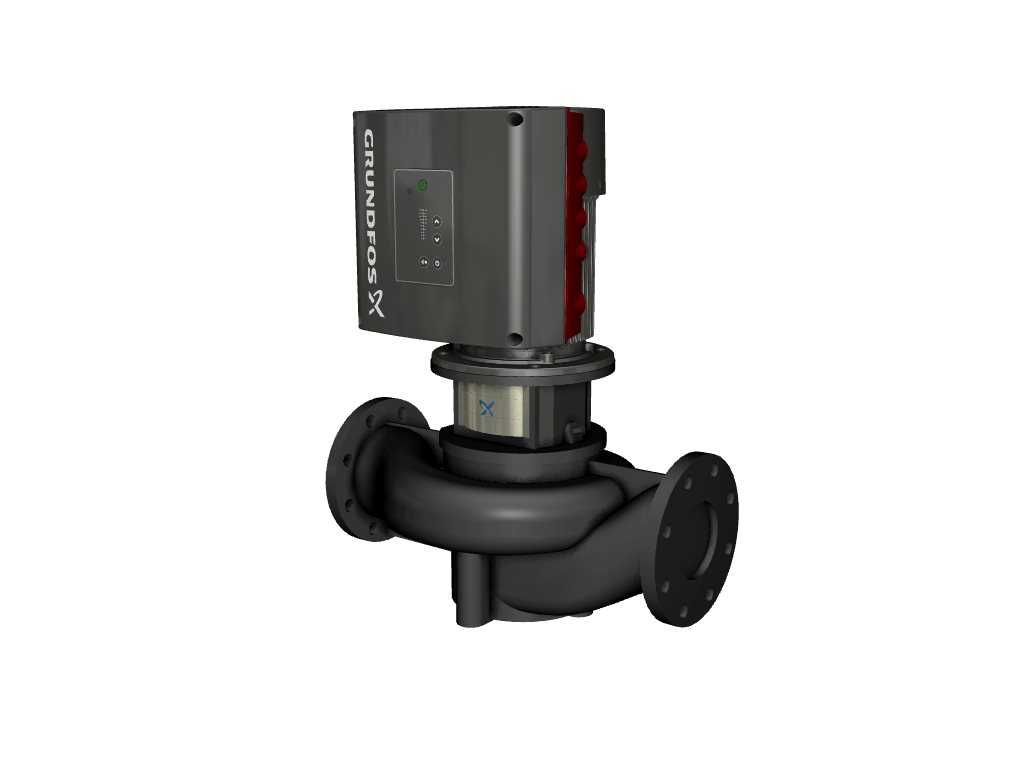

Grundfos TPE 100-110/4 A-F-B-BAQE (99113733)
Produkt ID: 99113733
Anfrage Preis und Verfügbarkeit
Grundfos TPE 100-110/4 A-F-B-BAQE (99113733)
Grundfos TPE 100-110/4 A-F-B-BAQE (99113733)
| Specification | Value | |
|---|---|---|
| Liquid: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | 0 .. 120 �?°C | |
| Liquid temperature during operation: | 20 �?°C | |
| Density: | 998.2 kg/m�?³ | |
| Technical: | ||

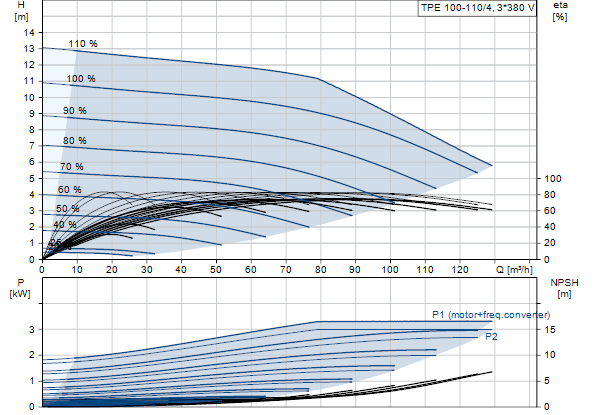

| Speed for pump data: | 1455 rpm | |
| Rated flow: | 85.9 m�?³/h | |
| Rated head: | 8.7 m | |
| Actual impeller diameter: | 177 mm | |
| Primary shaft seal: | BAQE | |
| Curve tolerance: | ISO9906:2012 3B | |

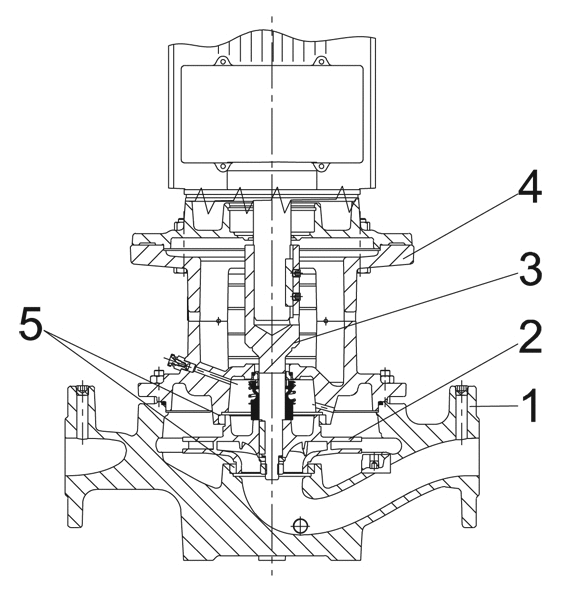

| Materials: | ||
| Pump housing: | Cast iron | |
| EN-JL1040 | ||
| ASTM A48-40 B | ||
| Impeller: | Bronze(CuSn10) | |
| DIN W.-Nr. 2.1096.01 | ||
| ASTM B584-C83600 | ||
| Installation: | ||
| Range of ambient temperature: | -20 .. 50 �?°C | |
| Maximum operating pressure: | 16 bar | |
| Flange standard: | DIN | |
| Pipe connection: | DN 100 | |
| Pressure rating: | PN 16 | |

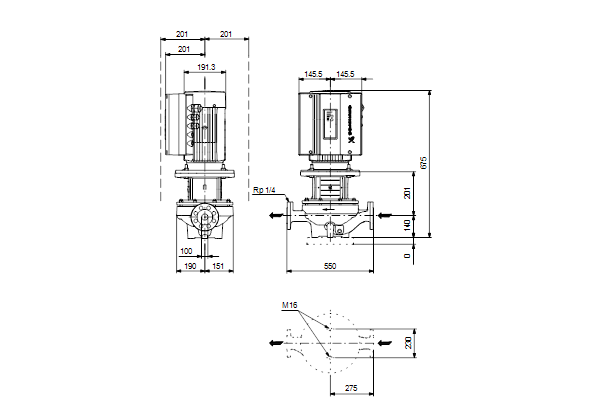

| Port-to-port length: | 550 mm | |
| Flange size for motor: | FF215 | |
| Electrical data: | ||
| Motor type: | 100LD | |
| IE Efficiency class: | IE5 | |
| Rated power - P2: | 3 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-500 V | |
| Rated current: | 5,80-4,60 A | |
| Cos phi - power factor: | 0,91-0,86 | |
| Rated speed: | 180-2200 rpm | |
| Efficiency: | 90,1% | |
| Enclosure class (IEC 34-5): | IP55 | |
| Insulation class (IEC 85): | F | |
| Others: | ||
| Minimum efficiency index, MEI â�?¥: | 0.70 | |
| ErP status: | EuP Standalone/Prod. | |
| Net weight: | 103 kg | |
| Gross weight: | 122 kg | |
| Shipping volume: | 0.39 m�?³ | |
