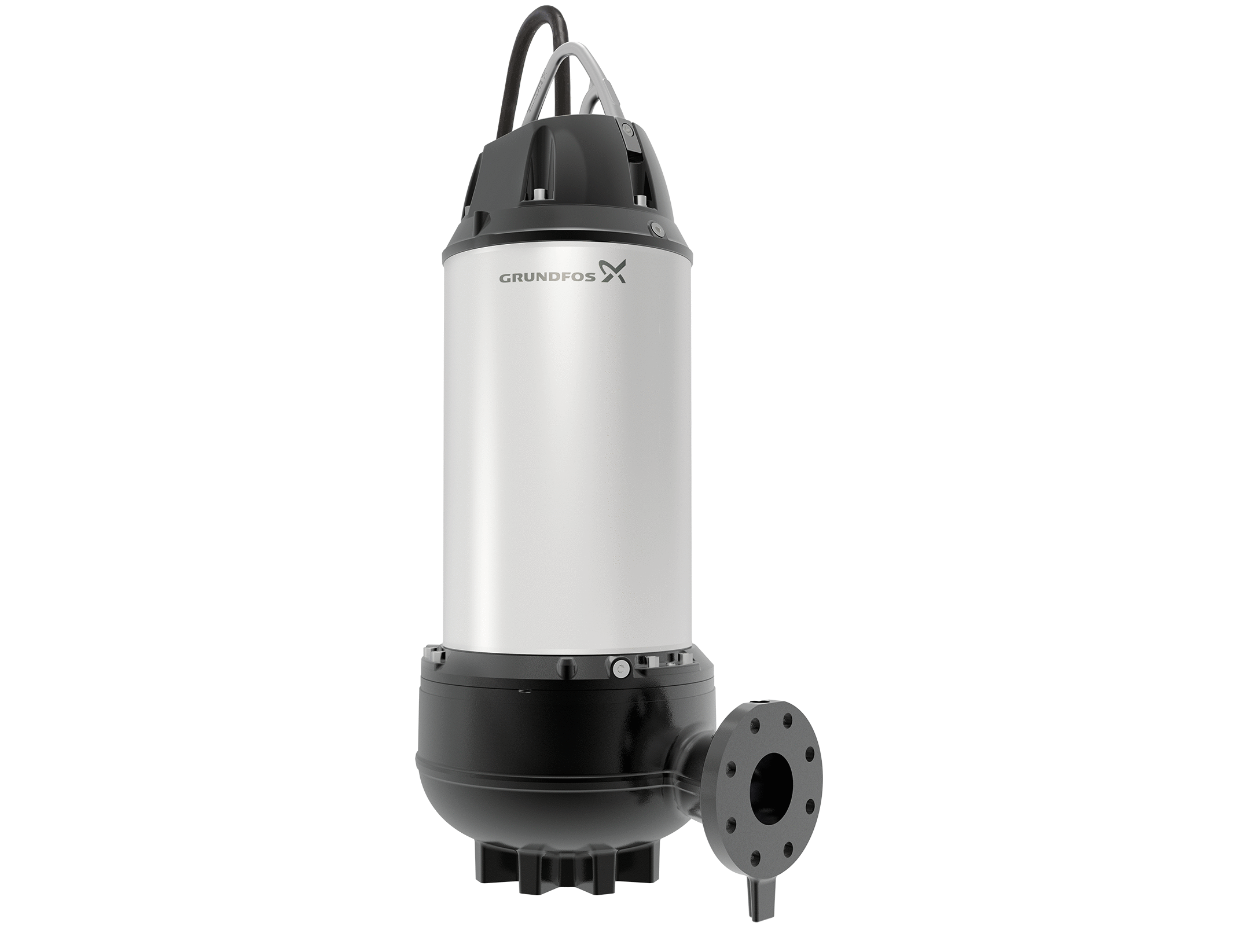

Grundfos SEV.80.80.130.2.52H.H.N.51D (98179855)
Produkt ID: 98179855
Anfrage Preis und Verfügbarkeit
Grundfos SEV.80.80.130.2.52H.H.N.51D (98179855)
Grundfos SEV.80.80.130.2.52H.H.N.51D (98179855)
| Specification | Value | |
|---|---|---|
| Controls: | ||
| Moisture sensor: | with moisture sensors | |
| Water-in-air sensor: | N | |
| Liquid: | ||
| Liquid temperature range: | 0 .. 40 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||

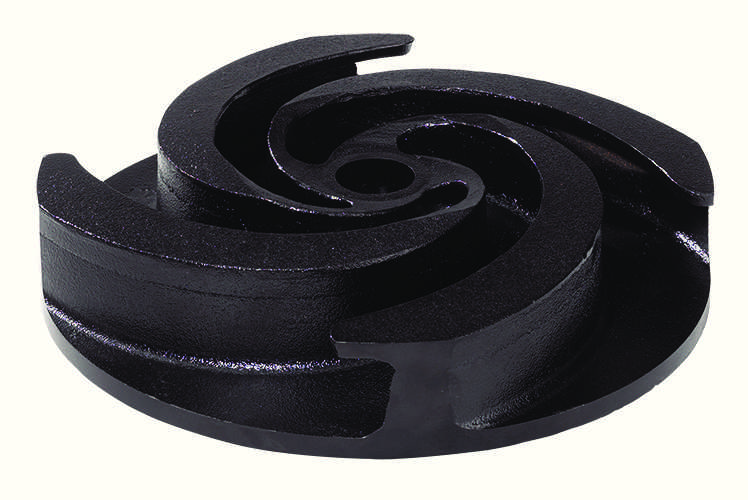

| Type of impeller: | SUPERVORTEX | |
| Maximum particle size: | 80 mm | |
| Primary shaft seal: | SIC-SIC | |
| Secondary shaft seal: | SIC-CARBON | |
| Curve tolerance: | ISO9906:2012 3B | |
| Materials: | ||
| Pump housing: | Cast iron | |
| EN 1561 EN-GJL-250 | ||
| Impeller: | Cast iron | |
| EN 1563 EN-GJS-500-7 | ||
| Motor: | Cast iron | |
| EN 1561 EN-GJL-250 | ||
| Installation: | ||
| Maximum ambient temperature: | 40 °C | |
| Flange standard: | DIN | |
| Pump inlet: | DN 100 | |
| Pump outlet: | DN 80 | |
| Pressure rating: | PN 10 | |
| Maximum installation depth: | 20 m | |
| Inst horizontal: | 98113361 | |
| Frame range: | 52 | |
| Electrical data: | ||
| Power input - P1: | 15 kW | |
| Rated power - P2: | 13 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-415/660-690 V | |
| Voltage tolerance: | +10/-10 % | |
| Max starts per. hour: | 20 | |
| Rated current: | 27-25/16-15 A | |
| Maximum current consumption: | 26 A | |
| Starting current: | 245/138 A | |
| Rated current at no load: | 10.7 A | |
| Rated speed: | 2947 rpm | |
| Motor efficiency at full load: | 86 % | |
| Motor efficiency at 3/4 load: | 82 % | |
| Motor efficiency at 1/2 load: | 79 % | |
| Number of poles: | 2 | |
| Start. method: | star/delta | |
| Enclosure class (IEC 34-5): | IP68 | |
| Insulation class (IEC 85): | H | |
| Explosion proof: | no | |
| Ex-protection standard: | N | |
| Length of cable: | 10 m | |
| Cable type: | S1BN8-F | |
| Winding resistance: | 0,572 Ohm | |
| Cos phi 1/1: | 0,86 | |
| Cos phi 1/2: | 0,72 | |
| Cos phi 3/4: | 0,81 | |
| Others: | ||
| Net weight: | 376 kg | |
