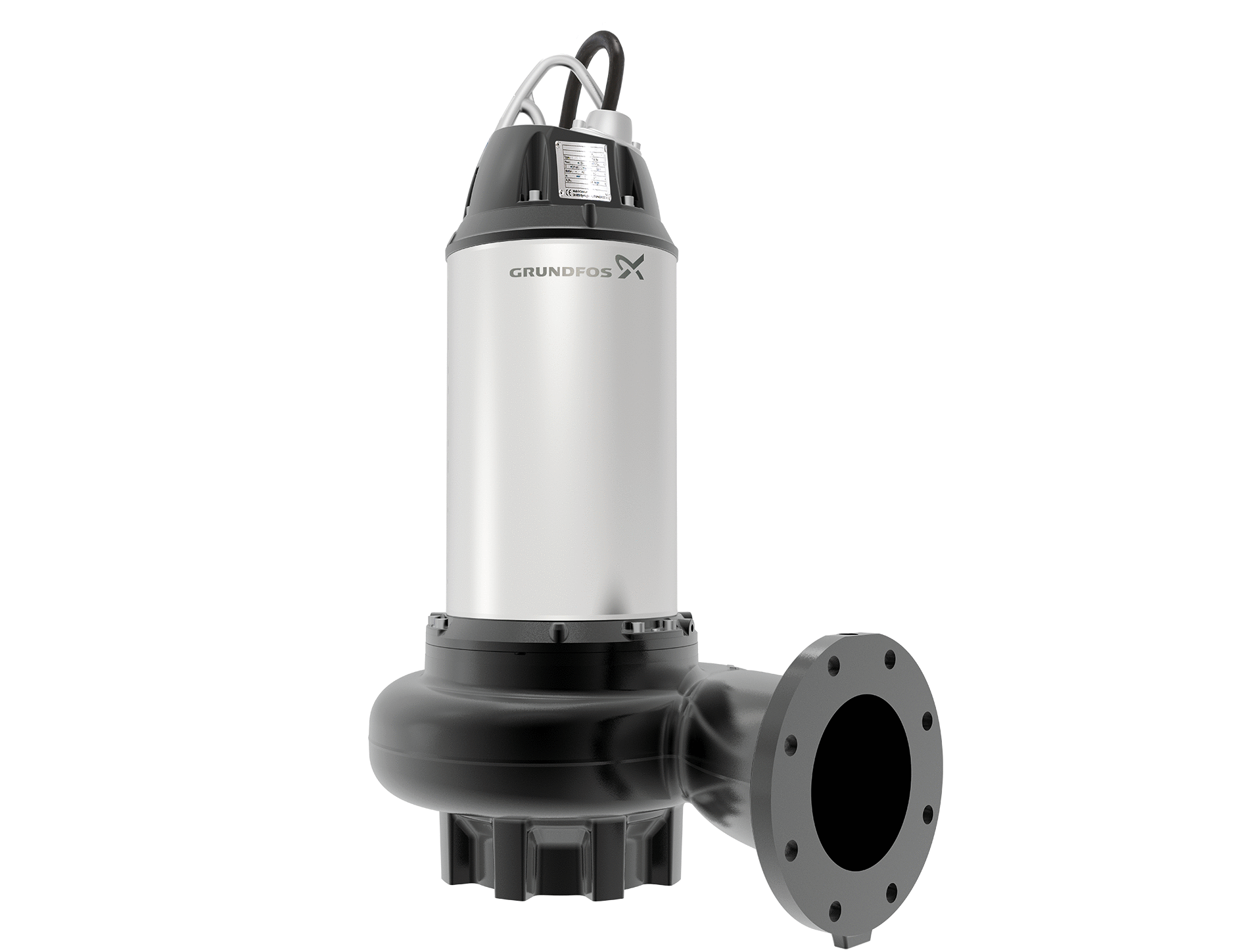

Grundfos SE1.160.300.110.6.52E.H.N.51D (98179843)

Produkt ID: 98179843

Anfrage Preis und Verfügbarkeit

Grundfos SE1.160.300.110.6.52E.H.N.51D (98179843)
Part Number: 98179843

Grundfos SE1.160.300.110.6.52E.H.N.51D (98179843)

SE1.160.300.110.6.52E.H.N.51D

Nicht selbsansaugende, einstufige Tauchmotorpumpe zur Förderung von Abwasser, Brauchwasser und unbehandeltem Rohabwasser. Die Pumpe ist sowohl für den Aussetzbetrieb als auch für den Dauerbetrieb geeignet. Mit Kühlmantel, sodass neben der Nassaufstellung auch eine Trockenaufstellung ohne zusätzliche Motorkühlung möglich ist. Mit S-tube®-Laufrad mit einem freien Kugeldurchgang von 160 mm. Für Abwasser mit einem Trockensubstanzgehalt von bis zu 3 %. Mit SmartTrim-System für die Anpassung des Laufradspalts zur Erhaltung der maximalen Leistung über die gesamte Lebensdauer der Pumpe. Mit Grundfos SmartSeal-Dichtungssystem für einen leckagefreien Anschluss an einen Kupplungsfußkrümmer.

SpecificationValue
Controls:
Moisture sensor:  with moisture sensors
Water-in-air sensor:  N

Liquid:
Liquid temperature range:  0 .. 40 °C
Density:  998.2 kg/m³

Technical:
Type of impeller:  S-TUBE
Maximum particle size:  160 mm
Primary shaft seal:  SIC-SIC
Secondary shaft seal:  SIC-CARBON

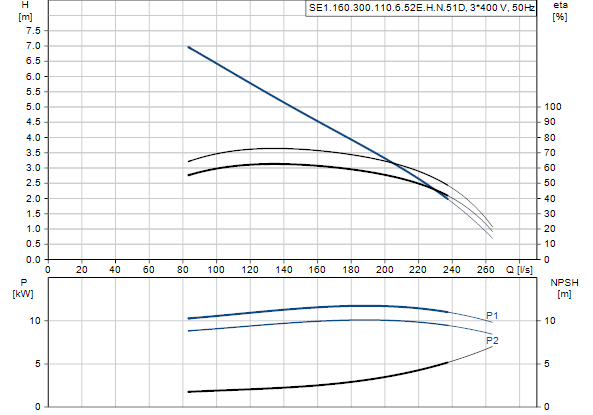

Curve tolerance:  ISO9906:2012 3B

Materials:
Pump housing:  Cast iron
   EN 1563 EN-GJS-500-7
Impeller:  Cast iron
   EN 1561 EN-GJL-250
Motor:  Cast iron
   EN 1561 EN-GJL-250

Installation:
Maximum ambient temperature:  40 °C

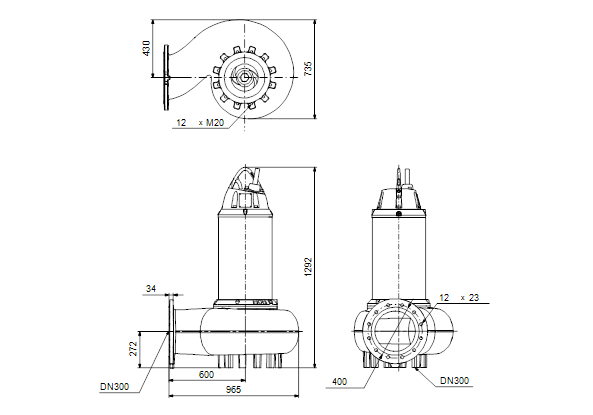

Pump inlet:  DN 300
Pump outlet:  DN 300
Maximum installation depth:  20 m
Inst horizontal:  98113369
Frame range:  52

Electrical data:
Power input - P1:  13 kW
Rated power - P2:  11 kW
Mains frequency:  50 Hz
Rated voltage:  3 x 380-415/660-690 V
Voltage tolerance:  +10/-10 %
Max starts per. hour:  20
Rated current:  28-26/16-16 A
Maximum current consumption:  27 A
Starting current:  185 A
Rated current at no load:  18 A
Rated speed:  983 rpm
Motor efficiency at full load:  86 %
Motor efficiency at 3/4 load:  86 %
Motor efficiency at 1/2 load:  84 %
Number of poles:  6
Start. method:  star/delta
Enclosure class (IEC 34-5):  IP68
Insulation class (IEC 85):  H
Explosion proof:  no
Ex-protection standard:  N
Length of cable:  10 m
Cable type:  S1BN8-F
Winding resistance:  0,620 Ohm
Cos phi 1/1:  0,70
Cos phi 1/2:  0,52
Cos phi 3/4:  0,62

Others:
Net weight:  595 kg
