Grundfos SE1.95.150.200.4.52H.C.N.51D (98179801)

Produkt ID: 98179801

Anfrage Preis und Verfügbarkeit

Grundfos SE1.95.150.200.4.52H.C.N.51D (98179801)
Part Number: 98179801

Grundfos SE1.95.150.200.4.52H.C.N.51D (98179801)

SE1.95.150.200.4.52H.C.N.51D

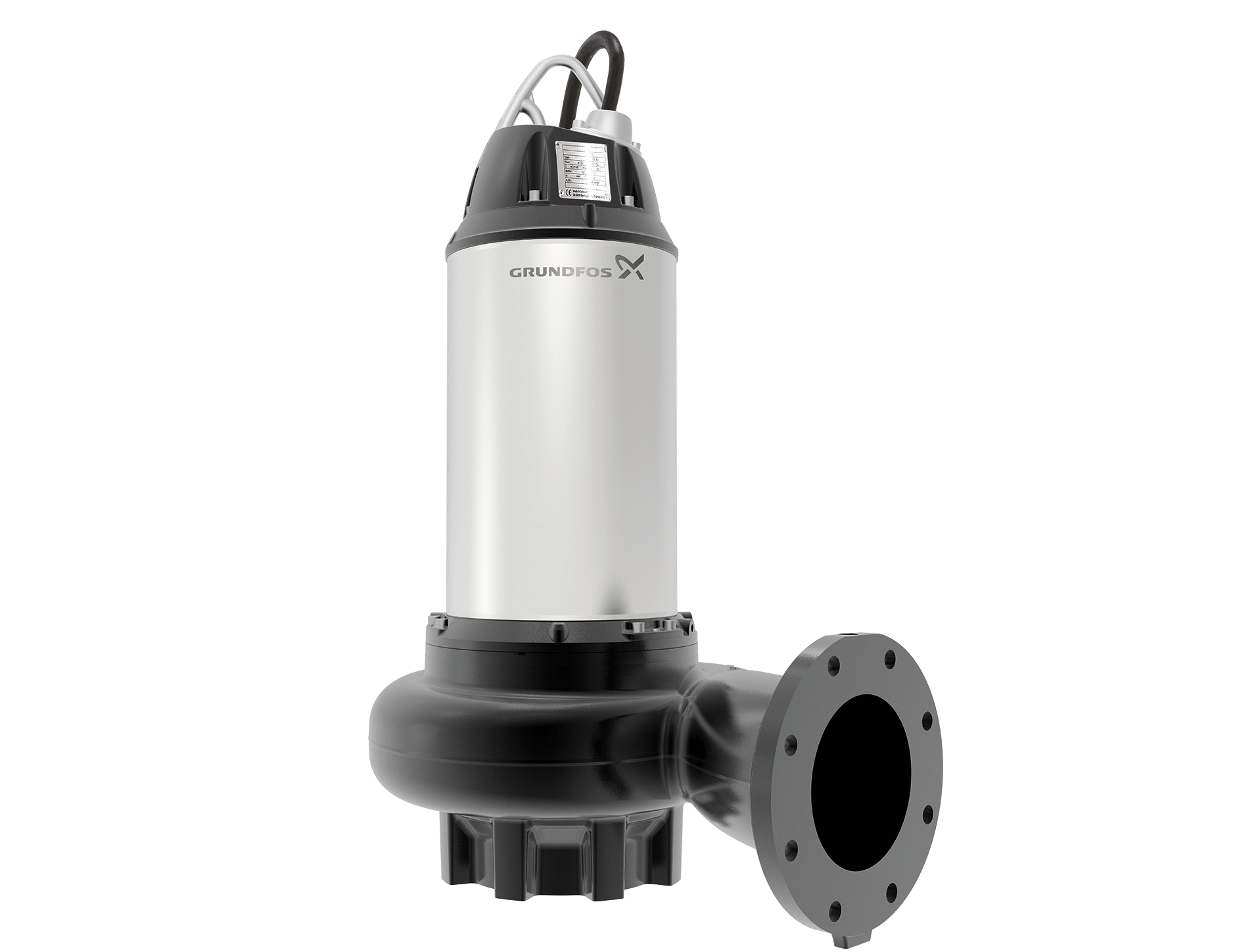

Nicht selbsansaugende, einstufige Tauchmotorpumpe zur Förderung von Abwasser, Brauchwasser und unbehandeltem Rohabwasser. Die Pumpe ist sowohl für den Aussetzbetrieb als auch für den Dauerbetrieb geeignet. Mit Kühlmantel, sodass neben der Nassaufstellung auch eine Trockenaufstellung ohne zusätzliche Motorkühlung möglich ist. Mit S-tube®-Laufrad mit einem freien Kugeldurchgang von 95 mm. Für Abwasser mit einem Trockensubstanzgehalt von bis zu 3 %. Mit SmartTrim-System für die Anpassung des Laufradspalts zur Erhaltung der maximalen Leistung über die gesamte Lebensdauer der Pumpe. Mit Grundfos SmartSeal-Dichtungssystem für einen leckagefreien Anschluss an einen Kupplungsfußkrümmer. Die Pumpe wird von einem hocheffizienten Grundfos Blueflux®-Motor der Effizienzklasse IE3 angetrieben.

SpecificationValue
Controls:
Moisture sensor:  with moisture sensors
Water-in-air sensor:  N

Liquid:
Liquid temperature range:  0 .. 40 °C
Density:  998.2 kg/m³

Technical:
Type of impeller:  S-TUBE
Maximum particle size:  95 mm
Primary shaft seal:  SIC-SIC
Secondary shaft seal:  SIC-CARBON
Curve tolerance:  ISO9906:2012 3B

Materials:
Pump housing:  Cast iron
   EN 1561 EN-GJL-250
Impeller:  Cast iron
   EN 1561 EN-GJL-250
Motor:  Cast iron
   EN 1561 EN-GJL-250

Installation:
Maximum ambient temperature:  40 °C
Flange standard:  DIN
Pump inlet:  DN 150
Pump outlet:  DN 150
Pressure rating:  PN 10
Maximum installation depth:  20 m
Auto-coupling:  97695489
Inst vertical:  96308238
Base stand:  96102256
Frame range:  52

Electrical data:
Power input - P1:  23 kW
Rated power - P2:  20 kW
Mains frequency:  50 Hz
Rated voltage:  3 x 380-415/660-690 V
Voltage tolerance:  +10/-10 %
Max starts per. hour:  20
Rated current:  43-39/25-24 A
Maximum current consumption:  41 A
Starting current:  381/209 A
Rated current at no load:  20.1 A
Rated speed:  1478 rpm
Motor efficiency at full load:  88 %
Motor efficiency at 3/4 load:  88 %
Motor efficiency at 1/2 load:  85 %
Number of poles:  4
Start. method:  star/delta
Enclosure class (IEC 34-5):  IP68
Insulation class (IEC 85):  H
Explosion proof:  no
Ex-protection standard:  N
Length of cable:  10 m
Cable type:  S1BN8-F
Winding resistance:  0,390 Ohm
Cos phi 1/1:  0,81
Cos phi 1/2:  0,69
Cos phi 3/4:  0,74

Others:
Net weight:  353 kg
