Grundfos SE1.110.200.150.4.52M.C.N.51D (98174812)
Produkt ID: 98174812
Anfrage Preis und Verfügbarkeit

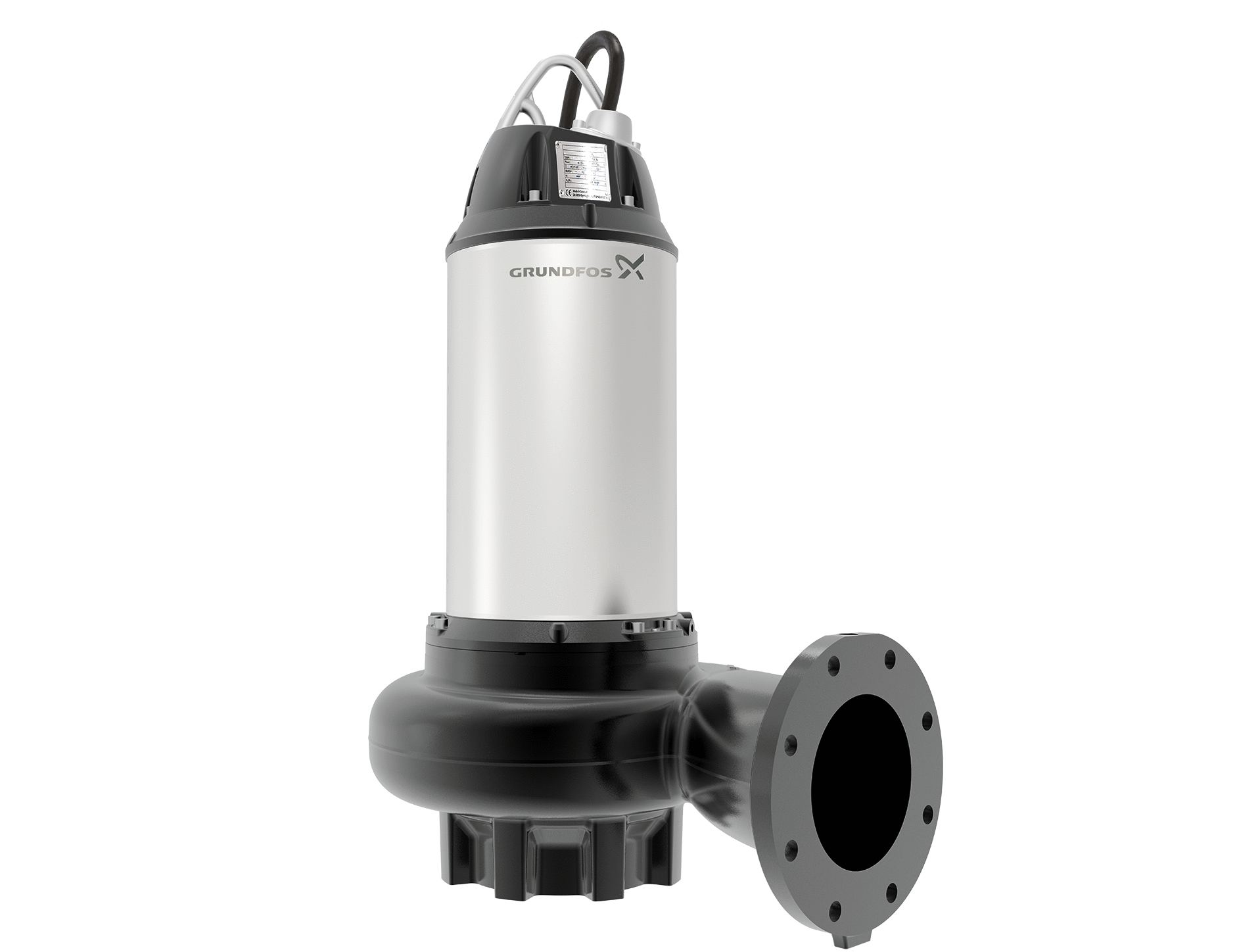

Grundfos SE1.110.200.150.4.52M.C.N.51D (98174812)
Nicht selbsansaugende, einstufige Tauchmotorpumpe zur Förderung von Abwasser, Brauchwasser und unbehandeltem Rohabwasser. Die Pumpe ist sowohl für den Aussetzbetrieb als auch für den Dauerbetrieb geeignet. Mit Kühlmantel, sodass neben der Nassaufstellung auch eine Trockenaufstellung ohne zusätzliche Motorkühlung möglich ist. Mit S-tube®-Laufrad mit einem freien Kugeldurchgang von 110 mm. Für Abwasser mit einem Trockensubstanzgehalt von bis zu 3 %. Mit SmartTrim-System für die Anpassung des Laufradspalts zur Erhaltung der maximalen Leistung über die gesamte Lebensdauer der Pumpe. Mit Grundfos SmartSeal-Dichtungssystem für einen leckagefreien Anschluss an einen Kupplungsfußkrümmer. Die Pumpe wird von einem hocheffizienten Grundfos Blueflux®-Motor der Effizienzklasse IE3 angetrieben.
| Specification | Value | |
|---|---|---|
| Controls: | ||
| Moisture sensor: | with moisture sensors | |
| Water-in-air sensor: | N | |
| Liquid: | ||
| Liquid temperature range: | 0 .. 40 °C | |
| Density: | 998.2 kg/m³ | |
| Technical: | ||
| Type of impeller: | S-TUBE | |
| Maximum particle size: | 110 mm | |
| Primary shaft seal: | SIC-SIC | |
| Secondary shaft seal: | SIC-CARBON | |

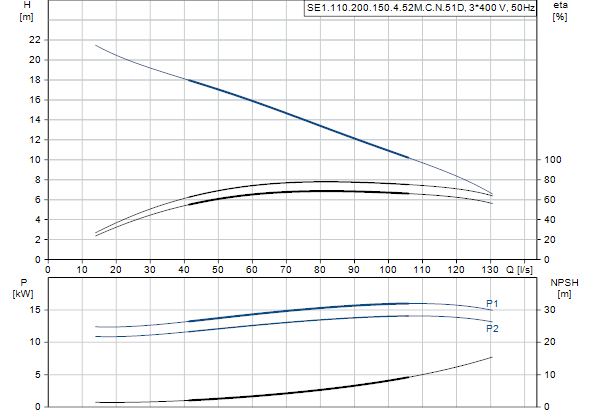

| Curve tolerance: | ISO9906:2012 3B | |
| Materials: | ||
| Pump housing: | Cast iron | |
| EN 1561 EN-GJL-250 | ||
| Impeller: | Cast iron | |
| EN 1561 EN-GJL-250 | ||
| Motor: | Cast iron | |
| EN 1561 EN-GJL-250 | ||
| Installation: | ||
| Maximum ambient temperature: | 40 °C | |

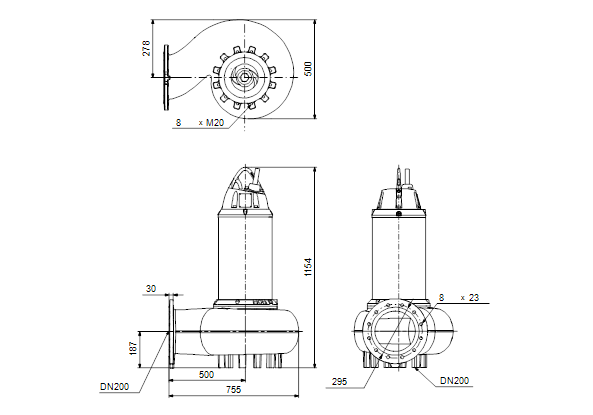

| Flange standard: | DIN | |
| Pump inlet: | DN 200 | |
| Pump outlet: | DN 200 | |
| Pressure rating: | PN 10 | |
| Maximum installation depth: | 20 m | |
| Auto-coupling: | 96641489 | |
| Inst vertical: | 96094523 | |
| Base stand: | 96789480 | |
| Frame range: | 52 | |
| Electrical data: | ||
| Power input - P1: | 17 kW | |
| Rated power - P2: | 15 kW | |
| Mains frequency: | 50 Hz | |
| Rated voltage: | 3 x 380-415/660-690 V | |
| Voltage tolerance: | +10/-10 % | |
| Max starts per. hour: | 20 | |
| Rated current: | 31-29/18-17 A | |
| Maximum current consumption: | 30 A | |
| Starting current: | 283/156 A | |
| Rated current at no load: | 12.6 A | |
| Rated speed: | 1480 rpm | |
| Motor efficiency at full load: | 88 % | |
| Motor efficiency at 3/4 load: | 88 % | |
| Motor efficiency at 1/2 load: | 87 % | |
| Number of poles: | 4 | |
| Start. method: | star/delta | |
| Enclosure class (IEC 34-5): | IP68 | |
| Insulation class (IEC 85): | H | |
| Explosion proof: | no | |
| Ex-protection standard: | N | |
| Length of cable: | 10 m | |
| Cable type: | S1BN8-F | |
| Winding resistance: | 0,499 Ohm | |
| Cos phi 1/1: | 0,84 | |
| Cos phi 1/2: | 0,70 | |
| Cos phi 3/4: | 0,80 | |
| Others: | ||
| Net weight: | 373 kg | |
