Grundfos DWK.E.10.200.550.5.1D.R (96922756)
Produkt ID: 96922756
Anfrage Preis und Verfügbarkeit
Grundfos DWK.E.10.200.550.5.1D.R (96922756)

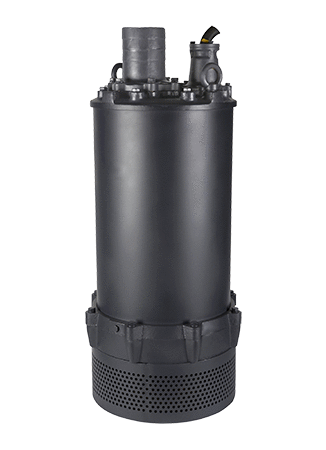

Submersible Contractor Pump
Grundfos DWK pump is a submersible pump for dewatering and drainage applications.
The pump is suitable for pumping
|
The pump design makes it suitable for both temporary and permanent installation.
The pump is cast iron, with vertical discharge port and integrated submersible 3-phase totally enclosed motor in insulation class F (155°C).
The pump has a rise pipe, a cooling jacket for continuous cooling of the motor by the pumped liquid and a high chrome stainless steel enclosed impeller to ensure high efficiency and maintained performance.
The pump is equipped with a double mechanical seal and an additional lip seal that prevents the shaft and the mechanical seal from abrasives.
The pump is equipped with a temperature bi-metal sensor for motor protection in case of overheating and electrode seal sensor to detect water penetration in to the motor housing.
The pump is fitted with suction strainer and 10 m cable.
The cable sealing consist of a rubber bushing, epoxy and rubber cover that eliminates the risk of water penetration in to the motor.
The pump is equipped with a hose coupling discharge.
| Specification | Value | |
|---|---|---|
| Art der Steuerung: | ||
| Dichtungssensor: | Y | |
| Fördermedium: | ||
| Medientemperaturbereich: | 0 .. 40 °C | |
| Dichte: | 998.2 kg/m³ | |
| Technische Daten: | ||
| Tatsächlicher Laufraddurchmesser: | 232 mm | |
| Laufradtyp: | E | |
| Maximale Korngrö�?e: | 10 mm | |
| Gleitringdichtung: | SIC-SIC | |
| Sekundärwellendichtung: | CERAMIC-CARBON | |
| Max. hydraulische Effizienz: | 73 % | |
| Kennlinientoleranz: | ISO9906:2012 3B | |
| Werkstoffe: | ||
| Pumpengehäuse: | Graugu�? | |
| EN1561 EN-GJL-200 | ||
| Laufrad: | Edelstahl mit hohem Chromanteil | |
| DIN W.-Nr. HI-CR | ||
| Motor: | Grauguss | |
| EN1561 EN-GJL-200 | ||
| Installation: | ||
| Maximale Umgebungstemperatur: | 40 °C | |
| Anschluss Druckstutzen: | DN 200 | |
| Maximale Einbautiefe: | 25 m | |
| Elektrische Daten: | ||
| Motorbemessungsleistung P2: | 55 kW | |
| Netzfrequenz: | 50 Hz | |
| Nennspannung: | 3 x 380-415 V | |
| Spannungstoleranz: | +5/-5 % | |
| Max Starts pro Stunde: | 18 | |
| Nennstrom: | 105 A | |
| Nennstrom bei 3/4 Ladung: | 83 A | |
| Nennstrom bei 1/2 Ladung: | 62 A | |
| Cos phi - Leistungsfaktor: | 0.865 | |
| Cos phi bei 3/4 Last: | 0.833 | |
| Cos phi bei 1/2 Last: | 0.756 | |
| Nenn-Drehzahl: | 2850 1/min | |
| Motorwirkungsgrad bei Vollast: | 90.6 % | |
| Motorwirkungsgrad bei 3/4-Last: | 90 % | |
| Motorwirkungsgrad bei halber Last: | 88.1 % | |
| Anzahl der Pole: | 2 | |
| Einschaltart: | Stern/Dreieck | |
| Schutzart (gem� IEC 34-5): | IP68 | |
| Wärmeklasse (IEC 85): | F | |
| Explosionsgeschützt: | nein | |
| Kabellänge: | 10 m | |
| Kabeltyp: | TP90/TP90 | |
| Sonstiges: | ||
| Nettogewicht: | 911 kg | |
